תיאור כללי
Fanless desigh with Intel® Celeron® Processor N4500 6W CPU Ultra compact PC design at only 0.67L (56.22x103x116.52mm) 1st 10 nm small core CPU Support M.2 2280 slot for SSD (support PCI-e x2+SATA) Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3) 1 x SO-DIMM DDR4 slots support 2933MHz, Max 16GB 802.11ac, Dual Band Wi-Fi & Bluetooth 4.2 Realtek 8111HS Gigabit LAN HDMI 2.0b support 4K@60P HDR10 mDP 1.4b support 4K@60P HBR2 Realtek ALC255 Codec 4 x USB 3.1 (1 x USB Type-C) Headphone Jack Mic-phone Jack VESA Mounting Bracket (75 x 75mm + 100 x 100mm) AC-DC adapter : 100-240V input, 19V 65W OS Support : Microsoft Windows 10 64Bit 1x Kensington Lock slot System Environment Operating Temperature: 0°C to +35°C System Storage Temperature: -20°C to +60°C
מדיניות החזרת מוצרים
החזרת סחורה הינה בכפוף לחוק הגנת הצרכן, בתוך 14 יום ממועד הרכישה בתנאי שאריזת המוצר המקורית הוחזרה במצב תקין ללא קרעים ושלא נעשה כל שימוש במוצר.
החזרת סחורה תחויב בחמישה אחוז דמי ביטול או במאה ₪ לפי הנמוך, לעסקאות במזומן. לעסקאות אשראי יתווספו עלויות סליקה וניכיון עבור חיוב זיכוי.
לאחר 14 יום החברה לא מחויבת לקבל החזרים, ועל פי שיקול דעתה הבלעדי יינתן זיכוי בלבד לרכישה בקיזוז 23% אחוז לכל הפחות ממחיר המוצר.
מחשבים נייחים שהוזמנו והורכבו לפי מפרט בחשבונית הלקוח או מחשבים ניידים עם שדרוגים, אינם נחשבים מוצרי מדף ולא ניתן להחזירם וזאת לפי החוק בנושא זה. על הלקוח לוודא כי הרכיבים, המערכת, המחשב, המוצר או שילובם מתאימים לדרישותיו ולמטרותיו, לשווי שהוצג וכד'.
מפרט
דגם מעבד
Intel® Celeron® Processor N4500 2.8GHz, 2 core (TDP 6W)
חיבור גרפי
Mini DisplayPort
חיבור גרפי
HDMI
חיבורי תקשורת
LAN 1 Gigabit
חיבורי תקשורת
Wi-Fi 5 (802.11ac)
חיבורי תקשורת
Bluetooth 4
USB Type-C
1
סוג זכרון
DDR4 SODIMM
חריצי זיכרון
1
כרטיס מסך משולב
Intel UHD 605 Graphics
כרטיס קול משולב
2 port
שלט
ללא שלט
גודל זיכרון (סה"כ RAM)
לא כלול - עד 16 גי'גה
נפח איחסון
Not included M.2
נפח איחסון
לא כלול, צריך להוסיף 2.5"
USB 3.0
3
סדרת מעבד (CPU)
Intel Celeron Dual Core
סוג דיסק
M.2 2280
סוג דיסק
2.5"
מידע
Intel® Pentium® Silver and Celeron® Processor BRIX use the newest Intel® Pentium® Silver and Celeron® processors offer amazing video conferencing abilities, faster wireless connectivity, improved overall application and graphics performance, and long battery life. BRIX with Intel Pentium Silver and Celeron processor family delivers unmatched balance of performance, experience and value for education and entry level computing. The platform includes ultra-fast Wi-Fi , 4K media support, next-gen Intel UHD Graphics and improvements in security in your choice of platform and OS at a price point for users who want rich experiences at a great value. |
![]() |
![]() |
Latest Intel 10nm Pentium Silver/ Celeron Processor Performance Intel new generation of small processor is much more powerful than before. Thanks new 10nm manufacturing processing and new core/GPU architectures, user can benefit not only performance boost, but also enjoy high-detail of UHD contents never before. Overall system benchmark can be easily over 40% and UP. |
Dual Storage Support New generation of BRIX can not only support newest PCI-e /SATA based M.2 SSD (1x2280), but also can be loaded with a traditional 2.5” HDD/SSD as well. It allows user to mixed dual storages at same time. Use M.2 SSD for faster boot up / load applications, and use large capacity HDD for all kind of media contents, files, documents without space limitation. |
![]() |
![]() |
DDR4 2933MHz Support GIGABYTE BRIX provides a 128-bit memory controller that supports DDR4 at up to 2933MHz. DDR4 is a type of synchronous dynamic random-access memory with a double data rate and high bandwidth interface. The primary advantages of DDR4 over its predecessor, DDR3, include higher module density and lower voltage requirements, coupled with higher data rate transfer speeds. |
VESA Support Bundled with a VESA bracket, the GIGABYTE BRIX™ can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit. |
![]() |
![]() |

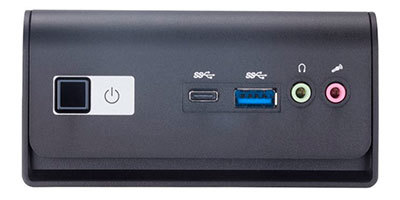

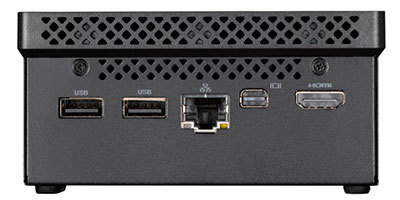

System Overview GIGABYTE BRIX mini PC with latest Intel 10nm Pentium Silver/ Celeron Processor offering tons useful I/O connectors. It offer up to 4 USB 3.1 ports with 1 newest USB Type-C, HD audio headphone/MIC inputs, plus a convenience HDMI 2.0+ mDP video output allow user to hook up any type of monitor. A gigabit ethernet speed up your internet/intranet connectivity. |
