תיאור כללי

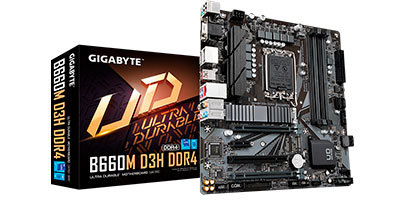

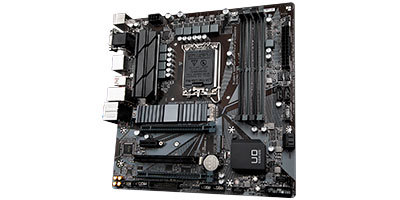

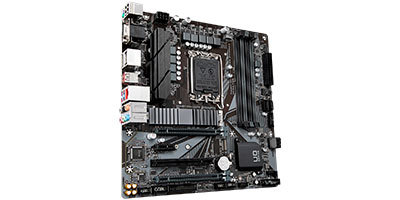

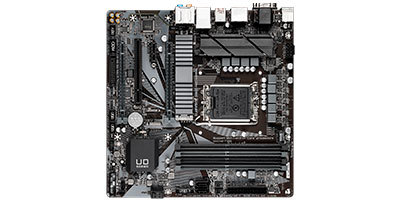

Intel® B660 Motherboard with 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink, 2 x PCIe 4.0 M.2 with Thermal Guard, 2.5GbE LAN, Rear USB 3.2 Gen 2 Type-C®, RGB FUSION 2.0, Q-Flash Plus. Supports 12th Gen Intel® Core™ Series Processors. Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. 8+1+1 Phases Hybrid Digital VRM with MOS Heatsink. Fast 2.5 GbE LAN with Bandwidth Management. Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard with Thermal Guard. Rear USB 3.2 Gen2 Type-C® for Fast and Versatile Connections. High Quality Audio Capacitors and Audio Noise Guard. RGB FUSION 2.0 supports Addressable LED & RGB LED Strips. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.
מדיניות החזרת מוצרים
החזרת סחורה הינה בכפוף לחוק הגנת הצרכן, בתוך 14 יום ממועד הרכישה בתנאי שאריזת המוצר המקורית הוחזרה במצב תקין ללא קרעים ושלא נעשה כל שימוש במוצר.
החזרת סחורה תחויב בחמישה אחוז דמי ביטול או במאה ₪ לפי הנמוך, לעסקאות במזומן. לעסקאות אשראי יתווספו עלויות סליקה וניכיון עבור חיוב זיכוי.
לאחר 14 יום החברה לא מחויבת לקבל החזרים, ועל פי שיקול דעתה הבלעדי יינתן זיכוי בלבד לרכישה בקיזוז 23% אחוז לכל הפחות ממחיר המוצר.
מחשבים נייחים שהוזמנו והורכבו לפי מפרט בחשבונית הלקוח או מחשבים ניידים עם שדרוגים, אינם נחשבים מוצרי מדף ולא ניתן להחזירם וזאת לפי החוק בנושא זה. על הלקוח לוודא כי הרכיבים, המערכת, המחשב, המוצר או שילובם מתאימים לדרישותיו ולמטרותיו, לשווי שהוצג וכד'.
מפרט
ערכת שבבים
Intel B660
תושבת מעבד
1700
תצורת לוח
Micro ATX
סוג זכרון
DDR4
סלוטים DDR4
4
ממשק אחסון
M.2 PCIe
ממשק אחסון
SATA3
חיבורי SATA3
4
חיבורי M.2 PCIe
2
PCI-E x16
1
חיבור USB קדמי
USB 3.2
חיבור USB קדמי
USB 2.0
כרטיס מסך משולב
כרטיס מסך משולב
חיבור גרפי
DisplayPort
חיבור גרפי
HDMI
חיבור גרפי
VGA
כרטיס קול משולב
6 port
חיבורי תקשורת
LAN 2.5 Gigabit
אריזה
Retail - קופסה
חריצי הרחבה
Trusted Platform Module - TPM
PCI-E x1
1
הערות
1 x parallel port header
חיבור סיריאלי COM
אופציונלי
RAID
0,1,5,10
PCI
1
USB Type-C
1
PCI-E x16 (x4) Slot
1
Thunderbolt
2 x Thunderbolt™ add-in card connectors
USB 3.2
5
USB 2.0
6
מידע
| Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading. 6+2+1 Phases Low RDS(on) MOSFETs Solid capacitors to improve transient response and minimize oscillation 8-pin Solid Pin CPU Power Connector |
![]() |
![]() |
GIGABYTE Ultra-Efficient M.2 Thermal Guard With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. |
| 2X Faster than ever Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1 GbE networking, perfectly designed for gamers with ultimate online gaming experience. Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet |
![]() |
![]() |
RGB FUSION 2.0 B660 motherboards feature RGB FUSION 2.0 to offer lighting effected options and customized settings with outstanding aesthetics, and able to let enthusiasts building a stylish and unique gaming PC. |
